    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover

    Ask Lasest Price
    Brand Name : mooge
    Supply Ability : 10 Set/Sets per Month
    Price : $13,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover

    Environmental friendly plastic pet bottle label remover

    Products Description
    Label remover machine completely changes the status of artificial stripping label.At the same time ,the label remover machine greatly improves the production efficiency, reduces labor intensity and makes good economic and social benefits.
    The working principle of PET bottle stripping machine:after feeding ,the bottles will be delivered to the discharge port by shaft where equipped with 116 alloy blades and show a certain angle and spiral rotation with centerline.The alloy blade on the blade stripped the label. Then there is a separation chamber to separate the peeled label from the PET bottles.
    The label sheet is blown out from the fan, the bottles will go on the next process.
    Product Paramenters
    Model
    LMD-7.5
    LMD-15
    LMD-22
    LMD-30
    LMD-37
    LMD-45
    Capacity
    500kg/hr
    1000-1500kg/hr
    2000kg/hr
    3000kg/hr
    4000kg/hr
    5000kg/hr
    Motor Power
    7.5KW
    15KW
    22KW
    30KW
    37KW
    45KW
    Rotor Diameter
    630mm
    630mm
    720mm
    720mm
    850mm
    850mm
    Roller Length
    3.5m
    4.5m
    4.5m
    4.5m
    4.5m
    4.5m
    Label Suction Fan Motor
    4KW
    4KW*2
    4KW*2
    4KW*2
    4KW*2
    4KW*2
    Label Separation Rate
    98%
    98%
    98%
    98%
    98%
    98%

    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover

    Product Photos
    Label Remover Machine
    Used to remove the labels from the bottle and separate label out from bottles.
    Label remove effective: > 98%
    Dry working without water
    Using the seal ball bearing with NSK brand.
    Bearing house is outside of machine body no dirty goes inside for long time use.

    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    Label Remover Machine
    Machine made by solid frame, on the top there is glass window easy to clean the machine and checking inside.
    The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use
    Rotary Blade
    Blade made by alloyed steel for long time use.
    Blade is fixed by screw on the rotor easy to adjustable and changeable.
    Rotor blades: 96 PCS for LMD-15
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    Fixed Blade
    Blade material: D2
    Channel Iron: Stainless Steel
    Label Remover Machine Rotor
    The rotor feeder part with screw so no bottles pop out.
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover

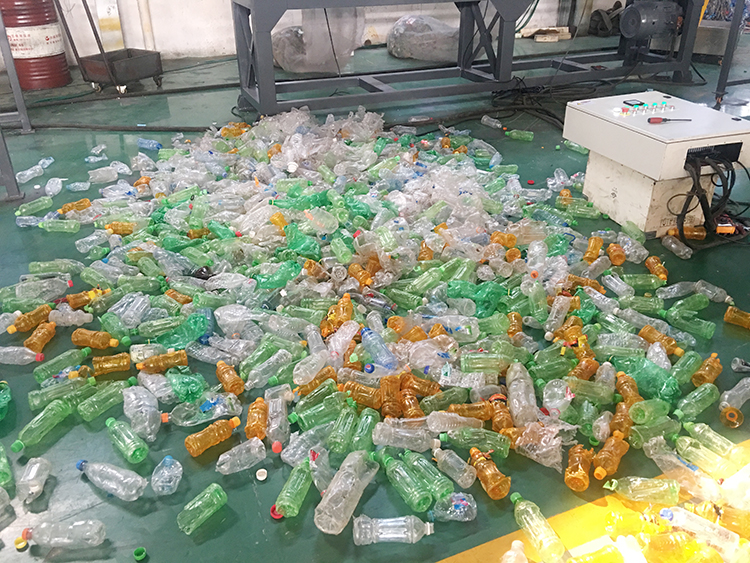

    After Remove---Round Bottle
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    After Remove---Baled Bottle
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    Label Remover Machine Producing-1
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    Label Remover Machine Producing-2
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    Label Remover Machine Producing-3
    Customer Show
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    Label Remover Machine in Malaysia
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    Label Remover in South Africa
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    Label Remover Machine in UK
    Auxiliary Machine

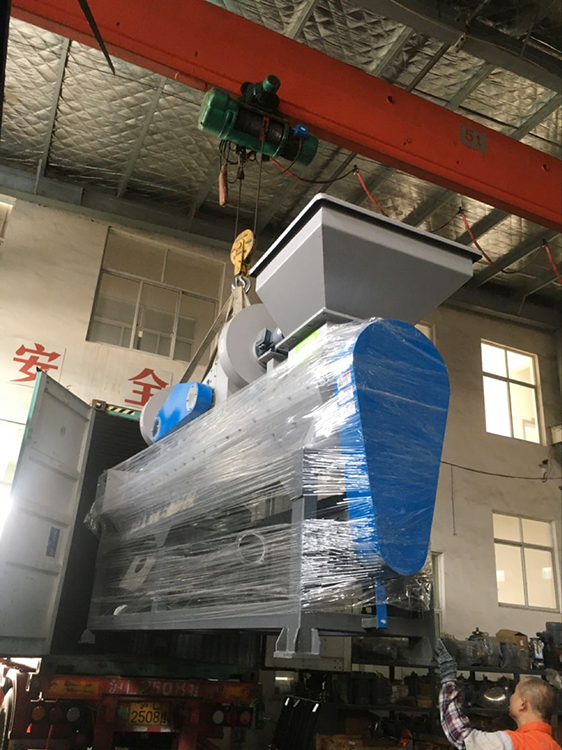

    Packing & Delivery
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    Our Exhibition
    500-5000kg/H Glass Bottle Label Remover Machine 30kw PET Bottle Label Remover
    After Sales Service

    Before Sales Service

    1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager ) 2. Professionally and patiently introduction, details pictures and working video to show machine

    On Sales Service

    1. Test every machine and inspect the machine seriously. 2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok. 3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.

    After Sales Service

    1. Free insurance for goods 2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
