PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder

MOOGE TECH MACHINERY CO., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder from wholesalers

    Buy cheap PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder from wholesalers
    • Buy cheap PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder from wholesalers
    • Buy cheap PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder from wholesalers
    • Buy cheap PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder from wholesalers
    • Buy cheap PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder from wholesalers
    • Buy cheap PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder from wholesalers
    • Buy cheap PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder from wholesalers

    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder

    Ask Lasest Price
    Brand Name : MOOGE TECH
    Certification : CE ISO
    Supply Ability : 20 Set/Sets per Month
    Price : $20,000.00/sets 1-4 sets
    • Product Details
    • Company Profile

    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder


    Big Diameter HDPE PVC pipe plastic shredder /recycling shredding machine

    Plastic shredder/shredding machine was main used to shred different kinds of plastic materials, especially very large waste plastic.
    single shaft shredder machine can shredding plastic lumps, barrels, pipes , wood, wood pallet, big block material, plastic container, plastic chair , plastic pallet, woven bags ,jumbo bags, cable tc.
    Our company has many years experience in manufacturing the plastic shredder machine, we supply 300~2000 kg/h capacity . we also can make it according to your requirement.
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    1. It adopts PLC control system, automatic overload protection and auto reverse switch
    2. Good shaft structure design, low noise,
    blades easy changeable
    3. The low rotation speed results in a particularly quiet shredding process with low levels of dustgeneration
    4. It can be adjusted according to customer specific requirements for throughput volume
    Product Paramenters
    Model
    VS-2860
    VS-4080
    VS-40100
    VS-40120
    VS-40150
    VS-48150
    Motor
    22KW
    37KW
    45KW
    55KW
    75KW
    90KW
    Rotor speed
    83 RPM
    83 RPM
    83 RPM
    83 RPM
    83 RPM
    83 RPM
    Rotor Diameter
    280 mm
    400 mm
    400 mm
    400 mm
    400 mm
    480 mm
    Rotor Blade Qty
    26 PCS
    38 PCS
    46 PCS
    58 PCS
    74 PCS
    111 PCS
    Fixed blade Qty
    1 PCS
    2 PCS
    2 PCS
    2 PCS
    3 PCS
    3 PCS
    Screen diameter
    60mm
    60mm
    60mm
    60mm
    60mm
    60mm
    Capacity
    300 kg/h
    600 kg/h
    800 kg/h
    1000 kg/h
    1500 kg/h
    2000 kg/h
    Product Photos
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    Rotary shaft
    The rotary shaft made by high quality carbon steel,anti-worn
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    Rotary blade
    Move blade made by D-2, by bolt fixed in the rotor shaft ,it is easy for worker change it . blade can use 4 times when the blade worn after using long time
    Fixed Blade
    Using D-2 materail,USA Standard,HRC 58-59 more better than SKD-II,We also can use DC-53 material
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    Screen
    the screen use 10mm thickness carbon steel made,with 60mm screen,the flakes will easy shredding and down
    Motor,Using Beide brand motor(siemens standard motors ltd in china)
    Bearing,Using Japan famous brand- NSKoriginal import from Japan factory We also supply SKF bearing for customer
    Contactor,Use Schneider brand in us control system
    PLC,Use Siemens PLC for shredder machineAutomatic control rotor shaft postive , negative rotary

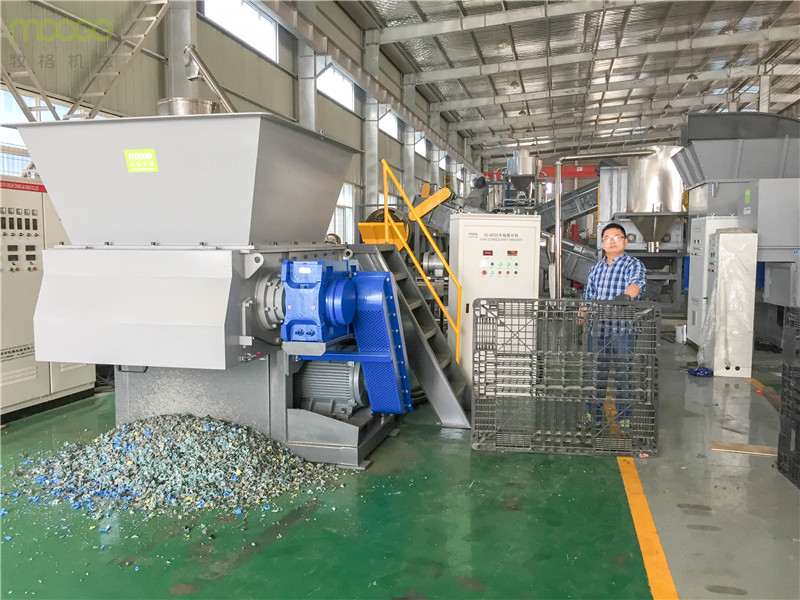

    Before shredding(Raw materail)
    After shredding(Plastic flakes)
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    Related Product
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    PVC HDPE Heavy Duty Plastic Shredder Machine 400MM Plastic Recycling Shredder
    Our Service
    • Pre-sale: we given client the details technician offer, sign the sales contract etc
    • In-sales: we supply the details layout, installation instruction, technician support for the clients
    • After sales: we arrange engineer to install the machinery and training the workers for client
    • We have 24hours team to solve the after sales problem
    • We have free spare parts with the machine
    • We supply long term spare parts for every customer
    • We always up date the new technology to every customer
