    Electrocoagulation Aluminum Shredder Machine 2-50T/H Wastewater Treatment Plant

    Ask Lasest Price
    Brand Name : MOOGE
    Supply Ability : 10 Set/Sets per Month
    Price : $100,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

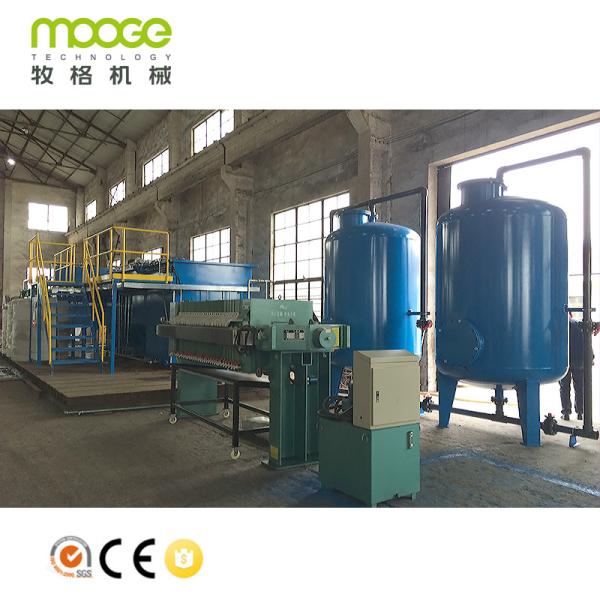

    Electrocoagulation Aluminum Shredder Machine 2-50T/H Wastewater Treatment Plant

    High Efficiency Wastewater Treatment Plant Electrocoagulation Water Treatment Machinery

    Products Description
    Industiral Wastewater Treatment System / Plant

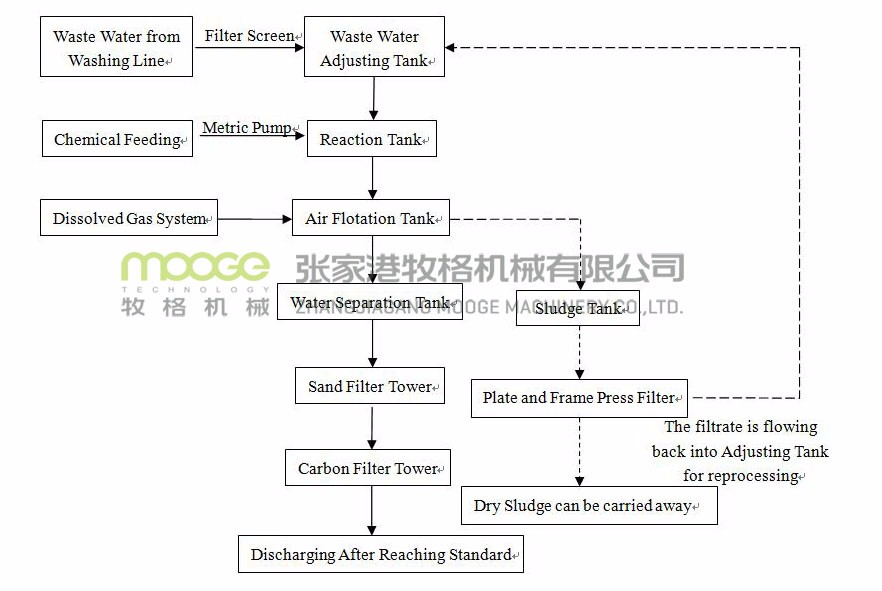

    This machine is used to waste water treatment. Waste water include plastic recycling line sewage, domestic sewage, factory sewage, school sewage and so on. The main machine include wastewater adjust pond, reaction tank, air floation tank, separation water tank, sand filter tower, carbon filter tower, sludge tank, plate frame filter press and so on. Before the waste water into treatment system. We need to build a Big sump and add a set screen which is used to filter Residue.Water will into wastewater adjusted pond(add sulfuric acid and PAC) and reaction tank(Add PAC and PAM). We use separation tank to separator water and Impurities. Sludge will into sludge tank and use filter press to solve it. Water will used sand filter and carbob filter tower. After this process, we can drain out it or used it again.
    Product Specification
    Model
    WT-5
    WT-10
    WT-15
    WT-20
    Capacity
    5 ton/h
    10 ton/h
    15 ton/h
    20 ton/h
    Running Power
    13 kw
    21 kw
    24 kw
    26kw
    Laber Request
    1-2 worker
    1-2 worker
    2-3 worker
    3-4 worker
    Line Dimension
    11*6*5m
    13*6*5m
    16*7*5m
    19*7*5m

    Electrocoagulation Aluminum Shredder Machine 2-50T/H Wastewater Treatment Plant

    Details Images
    Electrocoagulation Aluminum Shredder Machine 2-50T/H Wastewater Treatment Plant
    Electrocoagulation Aluminum Shredder Machine 2-50T/H Wastewater Treatment Plant
    Chemical Feeding
    -Three PE Barrel filled with chemical reaction material-Each barrel with individual pump and chemical feeding device
    -The PH of the water will be adjusted to best reaction state by the three automatically feeding.
    Air Floating Tank
    -Used for solid-liquid separation
    -With the dissolved air pump and tower will easily separate the solid and liquid water
    -The whole tank is made by stainless steel-With sludge scraper made by PVDF
    Electrocoagulation Aluminum Shredder Machine 2-50T/H Wastewater Treatment Plant
    Electrocoagulation Aluminum Shredder Machine 2-50T/H Wastewater Treatment Plant

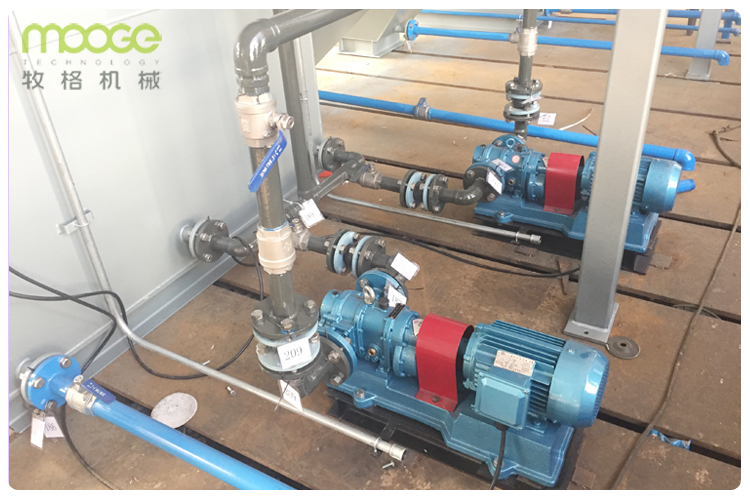

    Filter Recoil Pump with good brand
    -The pump is provide by SOUTH PUMP famous brand -Equipped with two sets shift use to ensure the system running with non-stop
    -The pipe connect with the pump is finely made

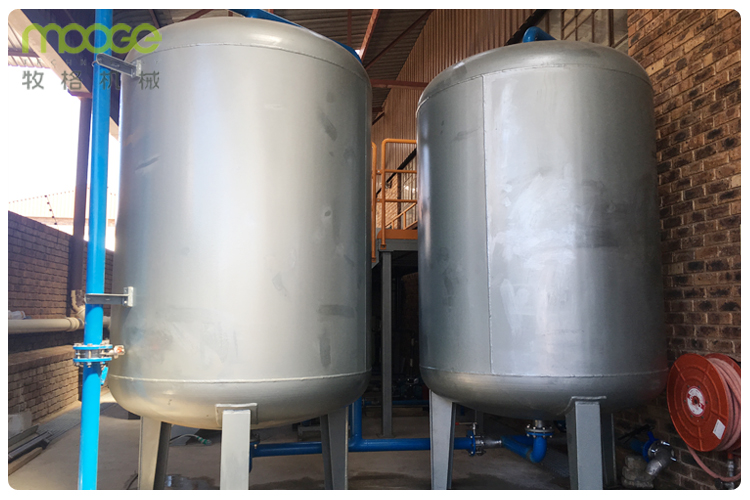

    Filter Tank
    -Two filter tank: carbon filter tank and sand filter tank-Each tank with the filter material inside
    -The tank are also made by stainless steel
    -The water after filter will be more clean
    Electrocoagulation Aluminum Shredder Machine 2-50T/H Wastewater Treatment Plant
    Electrocoagulation Aluminum Shredder Machine 2-50T/H Wastewater Treatment Plant

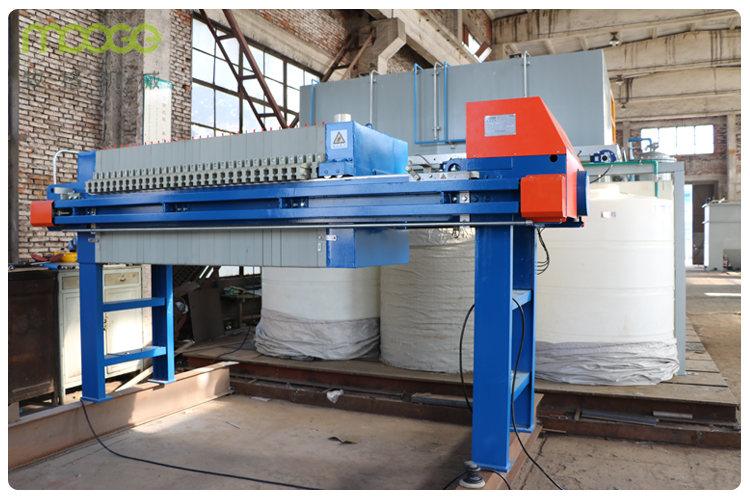

    Plate and Frame Press Filter
    -Press the sludge into dry form for easily carry-away-The sludge after press will get two kinds of form, dry form and liquid form
    -Dry form will be carried away and liquid form will come back to the water treatment for further processing
    Related Product
    Company Profile
    Electrocoagulation Aluminum Shredder Machine 2-50T/H Wastewater Treatment Plant
    Electrocoagulation Aluminum Shredder Machine 2-50T/H Wastewater Treatment Plant
    Certifications
    Electrocoagulation Aluminum Shredder Machine 2-50T/H Wastewater Treatment Plant
    Our Service
    • Pre sale: we give our client the detailed technician offer, sign the sales contract etc.
    • In sales: we supply the details layout, installation instruction, and technician support for the clients.
    • After sales: we arrange engineer to install the machine and train the workers for our client.
    • We have 24 hours service line to solve the after sales problem.
    • We have free spare parts with the machine.
    • We supply long term spare parts for every customer.
    • We always update the new technology to every customer.
