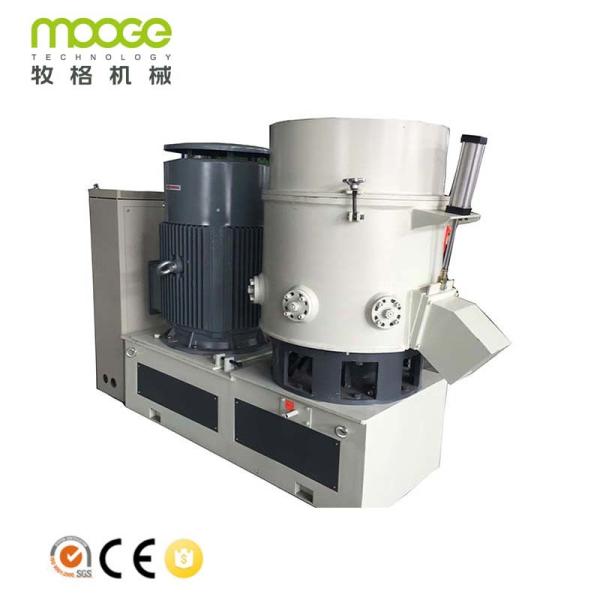

    PP PE Plastic Recycling Granulator Film Compactor Machine

    Ask Lasest Price
    Brand Name : Mooge Tech
    Supply Ability : 30 Set/Sets per Month
    Price : $6,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    PP PE Plastic Recycling Granulator Film Compactor Machine

    Plastic Compactor/PP PE Film Densifier/PET Fiber Agglomerator

    Products Description
    This Plastic PP PE Film Agglomerator/Densifier Machine used to granulate the thermal plastic films, PET fibers, whose thickness is less than 2 mm into small granules & pellets directly. The soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibers and other thermoplastics are suitable for it.
    Working Principle:
    When the waste plastic is supplied into the chamber, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.

    Features of waste plastic pp pe film agglomerator machine :
    1-Its working theory is different from ordinary extrusion pelletizer, no need electric heating, and can work whenever and wherever possible. It is jointly intelligent controlled by PLC& Computer, easy and stable for operations, and can save more electric power and manpower than common extrusion pelletizer.
    2- strong design of double bearing for holding the main shaft,High performance blades,Water flushing automatically.
    3-Used for changing PE, PP film/bags into agglomeration granules.Plastic Agglomerator will be recycling a waste of the plastic film and wall thickness of less than 2 millimeters products direct granulation equipment.
    PP PE Plastic Recycling Granulator Film Compactor Machine
    Product Paramenters
    Model
    GSL-100
    GSL-200
    GSL-300
    GSL-500
    GSL-600
    GSL-800
    Motor :kw
    37
    55
    75
    90
    110
    132
    Volume:L
    100
    200
    300
    500
    600
    800
    Effective Volume:L
    75
    150
    225
    375
    450
    600
    Capacity :kg/hr
    60-100
    100-150
    150-250
    300-400
    350-450
    500-600
    Product Photos
    PP PE Plastic Recycling Granulator Film Compactor Machine
    PP PE Plastic Recycling Granulator Film Compactor Machine
    Agglomerator machine rotor and fixed blade
    Opened by pneumatic
    PP PE Plastic Recycling Granulator Film Compactor Machine
    PP PE Plastic Recycling Granulator Film Compactor Machine
    Electric cabinet
    PP PE Plastic Recycling Granulator Film Compactor Machine
    PP PE Plastic Recycling Granulator Film Compactor Machine
    Before
    After
    PP PE Plastic Recycling Granulator Film Compactor Machine
    PP PE Plastic Recycling Granulator Film Compactor Machine
    PP PE Plastic Recycling Granulator Film Compactor Machine
    PP PE Plastic Recycling Granulator Film Compactor Machine
    After Sales Service

    Before Sales Service

    1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager ) 2. Professionally and patiently introduction, details pictures and working video to show machine

    On Sales Service

    1. Test every machine and inspect the machine seriously. 2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok. 3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.

    After Sales Service

    1. Free insurance for goods 2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
