    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator

    Ask Lasest Price
    Brand Name : Mooge
    Supply Ability : 30 Set/Sets per Month
    Price : $8,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator

    High quality Agglomerator Film Plastic Machine


    Product Description

    The plastic agglomerator/densifier /compactor machine is used to granulate the thermal plastic films, PET fibers, whose thickness is less than 2 mm into small granules & pellets directly. The soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibers and other thermoplastics are suitable for it.

    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator

    Working Principle:
    When the waste plastic is supplied into the chamber, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.

    Features:
    1-Its working theory is different from ordinary extrusion pelletizer, no need electric heating, and can work whenever and wherever possible. It is jointly intelligent controlled by PLC& Computer, easy and stable for operations, and can save more electric power and manpower than common extrusion pelletizer.
    2- strong design of double bearing for holding the main shaft,High performance blades,Water flushing automatically.
    3-Used for changing PE, PP film/bags into agglomeration granules.Plastic Agglomerator will be recycling a waste of the plastic film and wall thickness of less than 2 millimeters products direct granulation equipment.

    Our factory(Mooge) has many years experience in manufacturing plastic agglomerator/densifier /compactor machines, which can be maufactured according to your requirements.


    Techinical parameters:

    GSL Series mainly used for PE/PP film, woven bag, non-woven bag, etc.
    ModelGSL100GSL200GSL300GSL500GSL600GSL800
    Volume (L)100200300500600800
    Effective volume (L)75150225375450600
    Rotary blades (Qty)222444
    Fixed blades (Qty)668888
    Capacity (KG/H)100150200300400550
    Power (KW)3755759090-110110

    GHX Series used for PET fiber to produce popcorn material
    ModelGHX100GHX300GHX400GHX500
    Volume (L)100300400500
    Effective volume (L)75225340375
    Rotary blades (Qty)2244
    Fixed blades (Qty)6888
    Capacity (KG/H)100200350500
    Power (KW)374590110

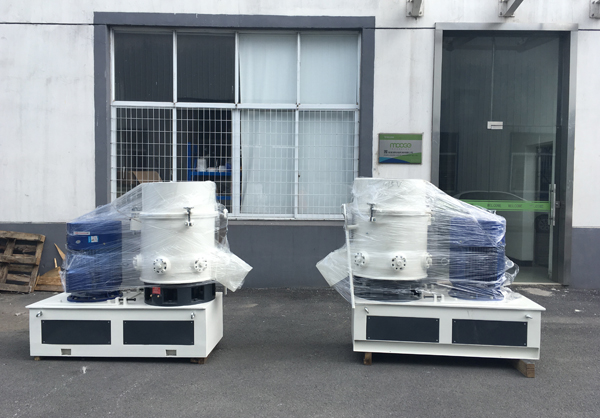

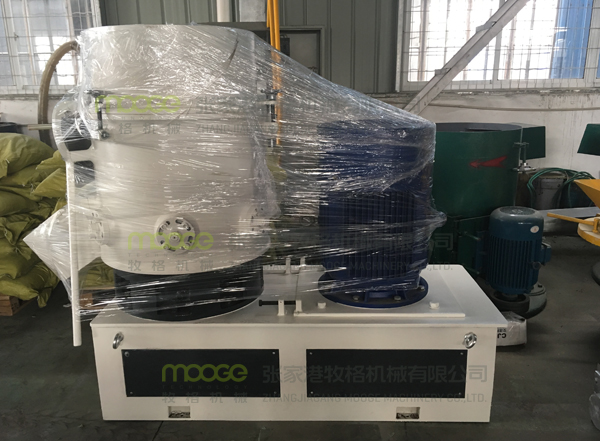

    Machine photos:

    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator


    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator


    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator


    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator


    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator

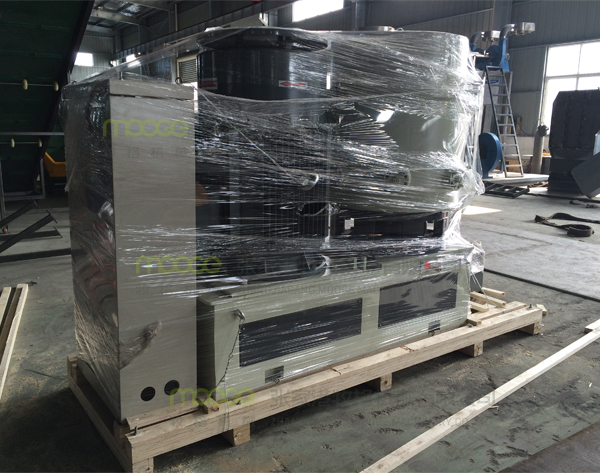

    Packaging & Shipping

    • For the loose cargo we will packing by wooden box

    • For the full container loading we are packing the machine by film and some on pallet accordingly
    • We can shipping the goods by air or by sea
    • We will send pictures of cargo loading to our client to check and keep recording
    • We can send cargo to client’s warehouse to loading

    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator


    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator


    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator


    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator

    Our Services

    • Pre-sale: we given client the details technician offer, sign the sales contract etc.
    • In-sales: we supply the details layout, installation instruction, technician support for the clients.
    • After sales: we arrange engineer to install the machinery and training the workers for client.
    • We have 24hours team to solve the after sales problem.
    • We have free spare parts with the machine.
    • We supply long term spare parts for every customer.

    Company Information

    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator

    Exhibitions

    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator

    Certifications

    50-1000kg/H Plastic Film Agglomerator HDPE Recycling Granulator

    FAQ

    1- How to choose proper products you want?

    • Please tell us as detail as what you want
    • What's your raw material it is?
    • What's the final products you want to produce?
    • What's capacity you want it performance?
    2- How to control the quality?
    • We have technical, engineer team design the sample machinery before enter into market
    • Production QC team ensure the machine manufacturing quality
    • We will running every machine after finished before shipment
    • Optional choose by client running the machinery by material
    • We always up date the new technology to every customer.
