    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt

    Ask Lasest Price
    Brand Name : MOOGE
    Supply Ability : 1 Set/Sets per Month
    Price : $310,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt

    Waste plastic PET cola bottle recycling plastic machinery equipment

    Product Overview

    Waste plastic PET cola bottle recycling plastic machinery equipment
    This series plastic PET washing line is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers. The plastic PET recycling line can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes.
    The production line can be placed in a straight line,also we can install the line as “U” or “L” shape.
    All your requirements of the plastic PET washing machine will be customized.
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt
    Products Description
    MT-2000 Recycled waste drinking water bottle plastic PET washing line components list
    SN:
    ITEM NAME
    SN:
    ITEM NAME
    1
    Steel Chain Conveyor Underground
    20
    1st Hot washing Tank With working platform
    2
    De-baling Machine
    21
    Screw Loader
    3
    Conveyor Belt
    22
    2nd High Speed Friction Dewatering washer
    4
    Trommel Machine
    23
    2nd Hot washing Tank With working platform
    5
    High Platform For Trommel
    24
    Screw Loader
    6
    Pre-Sorting Conveyor Belt
    25
    3rd High Speed Friction Dewatering washer
    7
    High Platform for Pre-sorting
    26
    2nd Floating washing tank With working platform
    8
    Magnetic Drum
    27
    Screw Loader
    9
    De-Labelling Machine (Dry Type)
    28
    3rd Floating washing tank With working platform
    10
    Conveyor Belt
    29
    Screw Loader
    11
    Manual Sorting conveyor
    30
    4th Floating washing tank With working platform
    12
    Automatic Metal detector
    31
    Screw Loader
    13
    Side conveyor For metal detector
    32
    Horizontal Dewatering Machine
    14
    Conveyor Belt
    33
    Hot air dryer
    15
    Crusher
    34
    Zig-zag air classifier
    16
    Screw Loader
    35
    Magnetic Box deferrization
    17
    1st Floating washing tank With working platform
    36
    Pneumatic Packing Silo
    18
    Screw Loader
    37
    Electric control panel
    19
    1st High Speed Friction Dewatering washer
    38
    Free spare parts
    FEATURES AT A GLANCE
    1- Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet griding can extension the blades use life, reduce the dust generation.
    2- Rotor shaft made by seamless steel tube,With drain hole on the bottom of tank,With the water spraying system
    3- We have the Bale opening and feeding system which and equally feeding the material save labor
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt

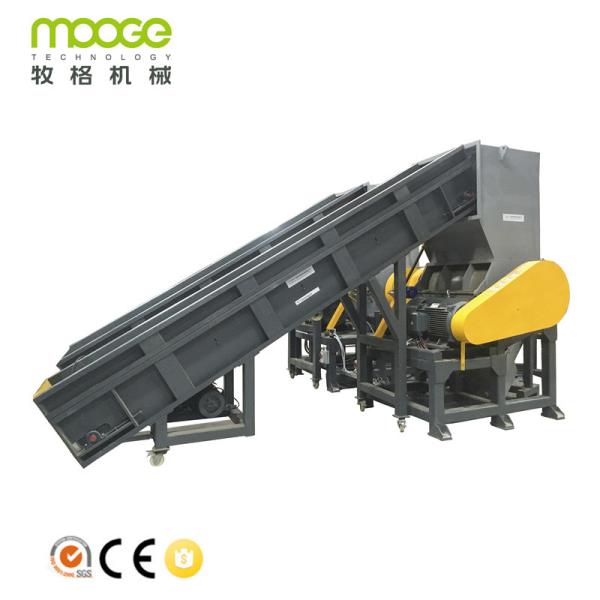

    Crusher Machine
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt
    Floating Washing Tank
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt

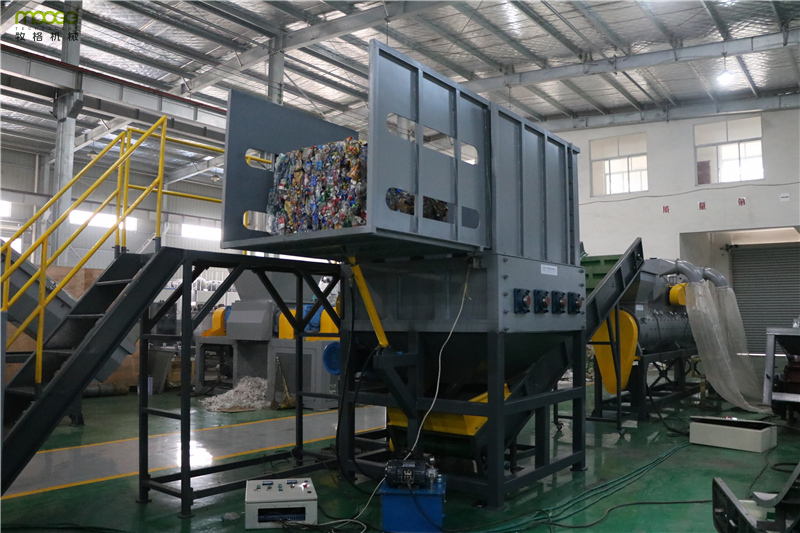

    De-baling Machine
    Customer Onsite

    Label Remover Machine

    Function:remove the labels from the bottle and separate label out from bottles Blade made by alloyed steel for long time use Blade is fixed by screw on the rotor easy to adjustable and changeable The barrel designed with doors opening on it very easy to opening and maintenance The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt

    Metal Detector

    Its installed on the sorting conveyor Once there is metal passing it, it will alarm and stop the sorting conveyor, after pick out the metal then start it again Precision for Ferrous >2.5mm Precision for non-Ferrous>3.2mm
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt

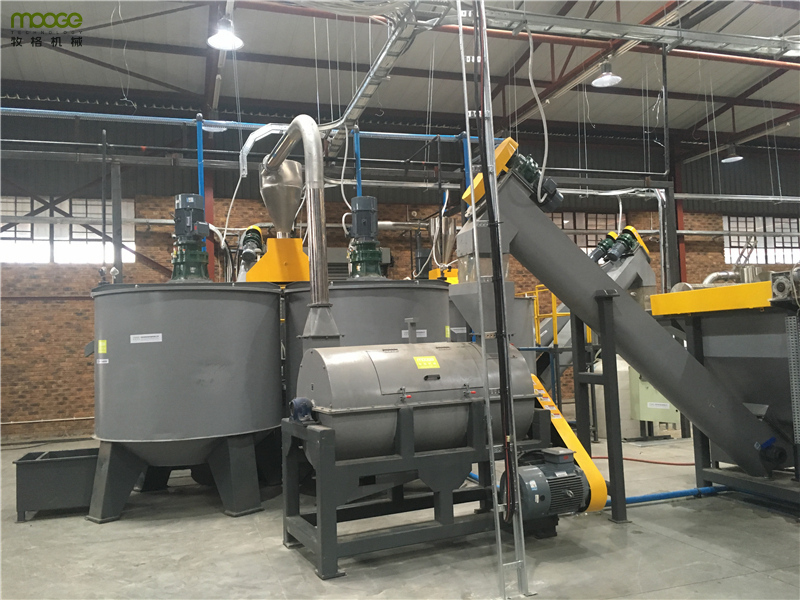

    Hot Washing Tank

    Function: with hot water washing to remove oil/glue and other dirty from the flakes The tank made with insulation layer to save energy.Feeding caustic soda/detergent to washing Its better Heating by steam, can buy a steam boiler to produce the steam, the boiler can heating up by gas/diesel/petrol/LPG
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt

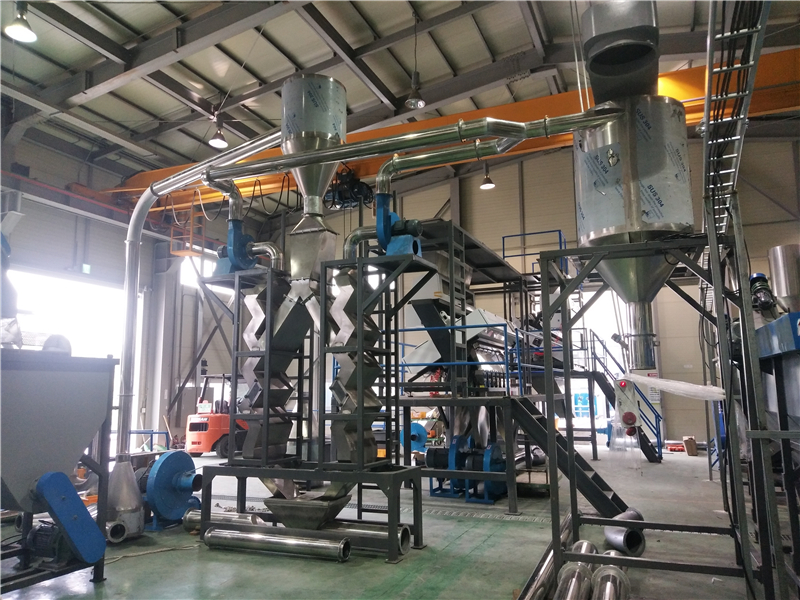

    Final “Zig-zag” label separator

    The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content. Blower with air flow adjustable,With valve to control the air flux of blower. Zig zag main chamber one set made by stainless steel,Chamber with plexiglass window to open and check inside
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt
    Exhibition
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt
    PET Cola Bottle Recycling Plastic Machinery 6000kg/H Bottle Conveyor Belt
    Product packaging
    1- For the loose cargo we will packing by Wooden box 2- For the Full container loading we are packing the machine by film and some on pallet accordingly 3- We can shipping the goods by air or by sea 4- We will send pictures of cargo loading to our client to check and keep recording 5- we can send cargo to client’s warehouse to loading
    After Sales Service
    Service before sale 1, 24 hours online .Your inquiry will be quick reply by email . Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager ) 2,Professionally and patiently introduction,details pictures and working video to show machine Service on sale : 1,Test every machine and inspect the machine seriously . 2,Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok . 3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free. If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery. Service after sale 1, Free insurance for goods 2, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.
