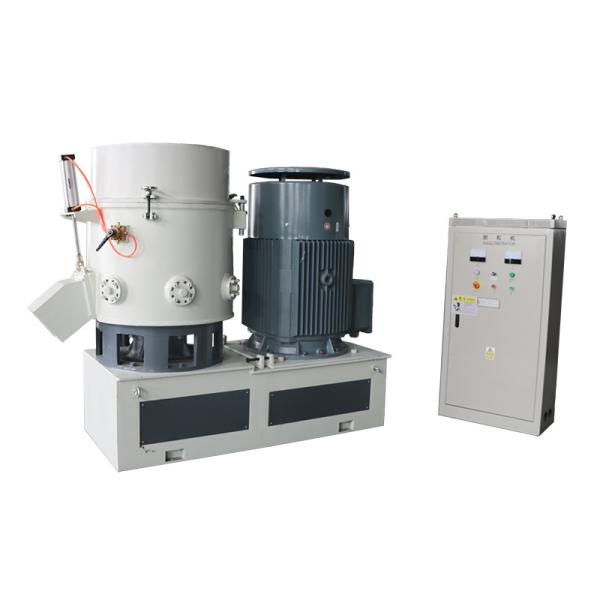

    Plastic Agglomeration Machine

    Ask Lasest Price
    Brand Name : MOOGE
    Certification : CE ISO9001
    Supply Ability : 200 Set/Sets per Year
    Price : $6,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    Plastic Agglomeration Machine

    plastic agglomerator machine

    The plastic agglomerator/densifier /compactor machine is used to agglomerate the plastic scrap such as wet or dry recycling plastic films, PET fiber, woven bags, PVC, LDPE, HDPE ,PS and other thermoplastics whose thickness is less than 2 mm into small granules & pellets directly. It is a necessary and economical machine for the PP PE plastic pelleting production line and the PP PE PVC pipe production line. it is also one necessary auxiliary machine for the plastic recycling production line.

    Working Principle:
    When the waste plastic is supplied into the chamber, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.
    Features:
    1-Its working theory is different from ordinary extrusion pelletizer, no need electric heating, and can work whenever and wherever possible. It is jointly intelligent controlled by PLC& Computer, easy and stable for operations, and can save more electric power and manpower than common extrusion pelletizer.
    2- strong design of double bearing for holding the main shaft,High performance blades,Water flushing automatically.

    main parameter
    model
    GHX-100
    GHX-300
    GHX-400
    GHX-500
    Volume:L
    100
    300
    400
    500
    effective voulme:L
    75
    225
    340
    375
    speed:r/min
    1050
    950
    850
    800
    capacity:kg/h
    200
    350
    750
    900
    motor:kw
    45
    90
    110
    160
    quantity of rotary blades
    2
    2
    4
    4
    quantity of fixed blades
    6
    8
    8
    8
    weight:kg
    1100
    1900
    2000
    3500
    dimension:m
    1.7*0.75*1.5
    2*0.85*1.6
    2*0.85*1.6
    2.3*0.95*1.7
    the material of body
    stainless steel
    blade material
    9Crsi,SKD-11

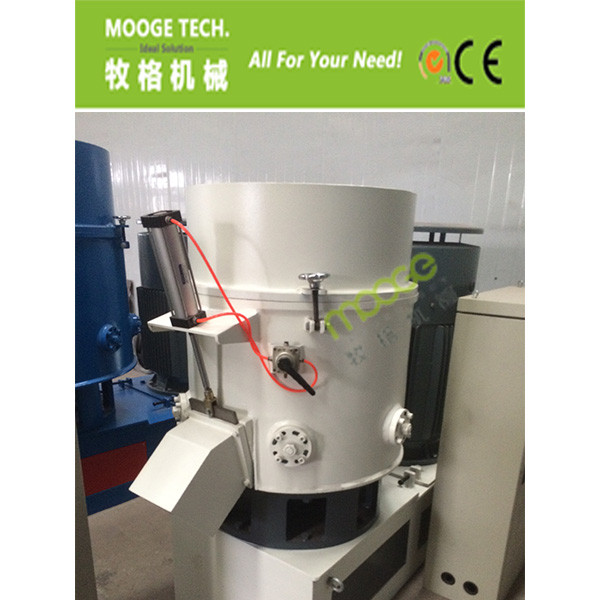

    Detailed Images
    Plastic Agglomeration Machine
    Plastic Agglomeration Machine
    Plastic Agglomeration Machine
    Plastic Agglomeration Machine
    Plastic Agglomeration Machine
    Plastic Agglomeration Machine
    Plastic Agglomeration Machine
    Plastic Agglomeration Machine
    Plastic Agglomeration Machine
    Packing & Delivery
    Plastic Agglomeration Machine
    Plastic Agglomeration Machine
    Plastic Agglomeration Machine
    FAQ

    1- How to Choose proper Products you want?
    Please tell us as detail as what you want?
    What’s your raw material it is?
    What’s the final products you want to produce?
    What capacity you want it performance?
    2- How to Control the quality?
    We have technical, engineer team design the sample machinery before enter into market
    Production QC team ensure the machine manufacturing quality
    We will running every machine after finished before shipment
    Optional choose by client running the machinery by material

    Certifications
    Plastic Agglomeration Machine
    Plastic Agglomeration Machine
