    PET Water Bottle Washing Line Crusher Shredder Recycling Machine

    Ask Lasest Price
    Brand Name : MOOGE
    Model Number : MT
    Certification : CE
    Price : USD125000
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1 SET 55Days
    Delivery Time : 45-65days
    • Product Details
    • Company Profile

    PET Water Bottle Washing Line Crusher Shredder Recycling Machine

    Product Overview
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine

    Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line
    This MT-series Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers, etc. The Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line can easily remove the labels, caps, rings, glue, dirties and other impurities off from the pet plastic, finally we will get ideal PET flakes with good quality for reuse.
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    Product Specification
    The Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line we made with capacity from 500kg/h to 5000 kg/h.
    We can design the machine layout into "L" or "U" shape according to buyer's actual factory area and requirements.
    Model
    Capacity
    Installed Power
    Steam Use
    Water Supply
    Manpower
    Area Required
    MT-500
    500 kg/hr
    190 KW
    Optional
    4-5 m3/hr
    4-6 Person
    60*5*5 m
    MT-1000
    1000 kg/hr
    260 KW
    Optional
    5-7 m3/hr
    8-10 Person
    80*8*5 m
    MT-2000
    2000 kg/hr
    400 KW
    Suggest Use
    10-15 m3/hr
    10-12 Person
    80*8*5 m
    MT-3000
    3000 kg/hr
    600 KW
    80,000 Kcal
    20-30 m3/hr
    12-16 Person
    100*8*10 m
    MT-4000
    4000 kg/hr
    800 KW
    100,000 Kcal
    30-40 m3/hr
    15-20 Person
    135*10*10 m
    MT-5000
    5000 kg/hr
    1000 KW
    120,000 Kcal
    40-50 m3/hr
    15-20 Person
    135*10*10 m
    We adopted well-known brand for the main motor, necessary parts of the machine.We manufacture the machine strictly according to the technical drawings and we can also make the components as buyer request
    Item
    Specification
    Raw Material
    Waste Rigid Plastic PET bottles, PET sheet, PET packages, etc
    Finished Product
    Clean dry plastic flakes (size can be recycled as buyer request)
    Main Machine List
    Bale Opener, Trommel, Label Remover Machine, Sorting Belt, Pre-washer Machine, Belt Conveyor, Crusher, Cold Washing Tank, High Speed Friction Washer, Hot Washing Tank, Centrifugal Dryer, Zig-zag Air Classifier, Color Sorter, Packing Silo
    Machine Material
    Machine frame is made by carbon steel, the machine washing part is made by SUS 304
    Main Components
    NSK/SKF bearing, TTO oil sealing, Guomao reducer,etc.
    Electric Components
    ABB/Delta inverter, Omron temperature meter, Schneider contactor, Chint switch, Siemens made in China motor, etc.
    Warranty Period
    One Year from the Machine Operation within 18 Months from the B/L Date
    Turnkey After Service
    Technical Support including the machine layout, electric diagram, working manual, engineer available to buyer's factory overseas for helping installation, commissioning, training workers, etc. consumable parts provided; 24-hours online after sale service;
    Features At-A-Glance
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine

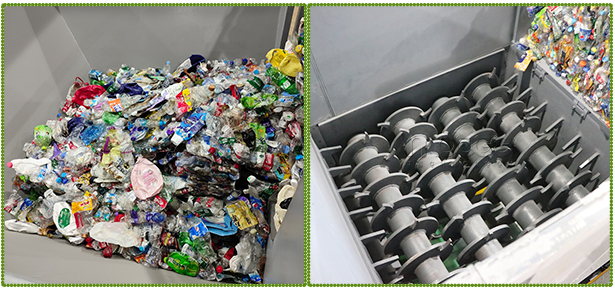

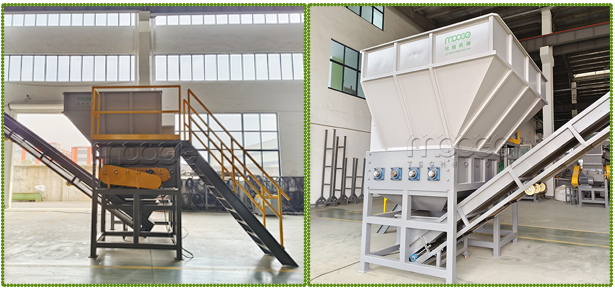

    Bale Opener Machine
    Function: Open the pressed PET bales
    >With 4 roller cylinder feeding the bottles equally, claw steel is very strong with 20mm thickness.
    >Machine chamber made by solid strong steel, chamber size 1.6*1.6m (depth x width).
    >We can make it with forklift working platform to push the bales, or with a hopper for temporary store the bales.
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine

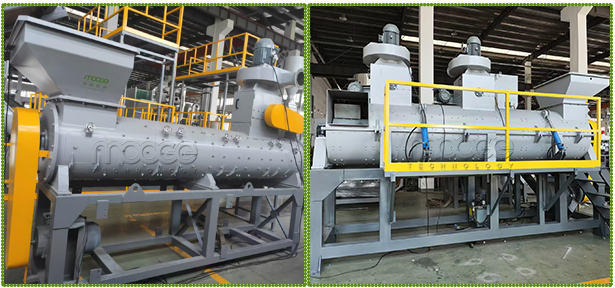

    Label Remover Machine
    Function:remove the labels from the bottles
    >Blades made by tungsten carbide and are fixed by screw easy to adjust and replace
    >The barrel designed with hydraulic system to lift up the chamber which is convenient to replace the blades
    >The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine

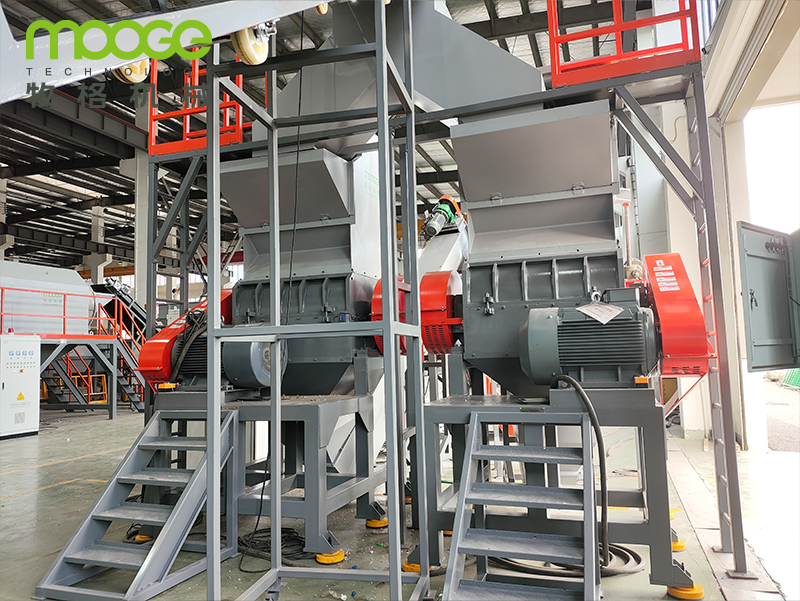

    Plastic Crusher Machine
    Function: crushing the PET bottles to small flakes.
    >With water inlet doing the wet grinding which can extend the blades lifespan, reduce the dust generation.
    >Crusher upper hopper opened by screw motor which save manpower
    >Bearing house is installed outside of the crusher chamber so no dirty goes inside for longer use.
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine

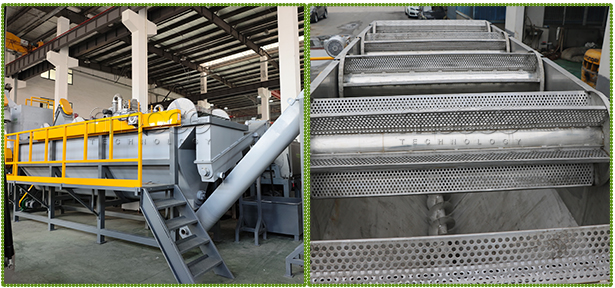

    Floating Washing Tank
    Function: with cold water washing out dirty from the flakes
    >With the top rollers automatically take out the caps and rings and other impurities but with less water taken out
    >Rotor shaft made by seamless steel tube.
    >Screw is made by stainless steel, we have different model of floating washing tank according to your requirements.
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    Hot Washing Tank
    Function: with hot water washing to remove oil/glue and other dirty from the flakes.
    >The tank made with insulation layer to keep the hot water temperature and save energy.
    >Feeding caustic soda or chemical detergent to washing the bottle flakes for better effect
    >The water is heated up by steam, steam is generated by the steam boiler
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    Horizontal Dewatering Machine
    Function: take out dirty and remover water from the bottle flakes
    >With high raotary speed reach up to 1500rpm with better effect for removing the water
    >With the famous SKF roller bearing fixed outside for long lifespan
    >Inside with mesh layer made by SUS304, which is also cleaned by the water spray system
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    “Zig-zag” Label Separator
    Function: The fine dust separator machine will remove the final labels from the flakes to reduce the PVC content.
    >Blower with air valve to control the air flux of blower.
    >Bottom with air blower and pipe for collecting the pet flakes
    >Zig zag main chamber one set made by stainless steel and with visible window
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine

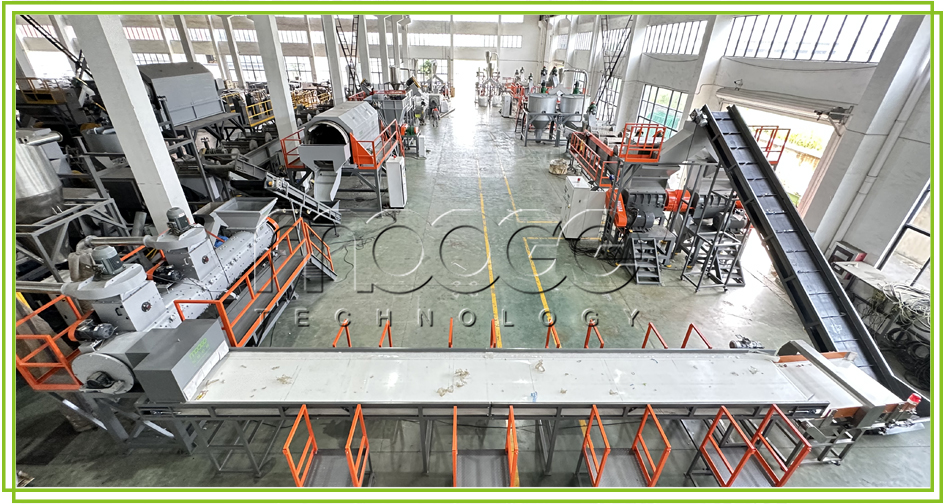

    Customer Onsite
    We sold the plastic recycling machine to hundreds of buyers from more than 100 countries in the world. Our high quality machine and good service are all well received by numerous customers from domestic and overseas. And we are expecting to seek the long-term business partner all over the world.
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    Marketing Campaign
    We attend the CHINAPLAS every year (In Shanghai and Guangzhou) and take with our machine for test run at th booth. Besides, we also attend the plastic exhibition in other countries such as Mexico, Turkey, Egypt, Russia, Malaysia, etc. Please kindly contact with us in advance if you also have time to attend and sincerely welcome to our booth for visit and discuss about detailed issues.
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    Why Choose Us
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
    FAQ
    PET Water Bottle Washing Line Crusher Shredder Recycling Machine
