    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine

    Ask Lasest Price
    Brand Name : MOOGE
    Model Number : YSS-200
    Certification : CE
    Price : 16890 USD 1 SET
    Payment Terms : T/T, L/C
    Supply Ability : 1 SET per 2 month
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine

    PP/PE Rigid Flakes Pelletizing Line

    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine

    PP PE Rigid Flakes Pelletizing machinechine
    In order to recycle waste plastic, the plastic need to be washed, dried then melted, plasticized, extruded into strips, cooled by cooling system, and cut into granules by granulator. These granules are further processed into various plastics products by blowing, injection and calendering. This line is a one/two stage plastic pelletizer/pelletizing/granulator , which is suitable for many kinds of plastic waste materials recycling such as PE, HDPE, LDPE, LLDPE,ABS,PS,PC bottle, hollow container, buckets ans so on.
    Product Specification
    Model
    Screw Diameter
    Screw L/D
    Main Motor Power
    Capacity Kg/hr
    YDS-SJ100
    100mm
    25-33:1
    45KW
    150-200
    YDS-120
    120mm
    25-33:1
    75KW
    200-300
    YDS-150
    150mm
    25-33:1
    110KW
    400-500
    YDS-160
    160mm
    25-33:1
    132KW
    500-600
    YDS-180
    180mm
    25-33:1
    160KW
    600-800
    YDS-SJ200
    200mm
    25-33:1
    200KW
    800-1000

    Model
    Screw Diameter
    Screw L/D
    Main Motor Power
    Capacity Kg/hr
    YSS-SJ100
    100mm
    25-33:1
    45KW+22KW
    150-200
    YSS-SJ120
    120mm
    25-33:1
    75KW+30KW
    200-300
    YSS-SJ150
    150mm
    25-33:1
    110KW+37KW
    400-500
    YSS-SJ160
    160mm
    25-33:1
    132KW+37KW
    500-600
    YSS-SJ180
    180mm
    25-33:1
    160KW+45KW
    600-800
    YSS-SJ200
    200mm
    25-33:1
    200KW+55KW
    800-1000

    FEATURES AT A GLANCE

    Screw loader and Dosing Feeder

    Use to loading flakes into dosing feeding
    Dosing feeding the material into exturder
    Keep the exturder more stable working
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine
    Single Screw Extruder
    Single screw Extruder made by sturdy frame, heavy. No vibrating when machine running;
    The whole frame where installed the gearbox, motor and screw has done the milling working.
    The frame is build up by the square tube and thick steel on top.
    Vacuum Degassing System
    With the vacuum degassing system
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine
    Hydraulic Screen Changer
    Double position board model
    Board made by 38CrMnAl with forging, heating treatment won’t deform after heating using.
    Degassing Die Head
    Made by 40Cr material with tempering and quenching treatment. Design as a material disperser so the material comes out as noddle, so it can remove the air and humidity from the material.
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine

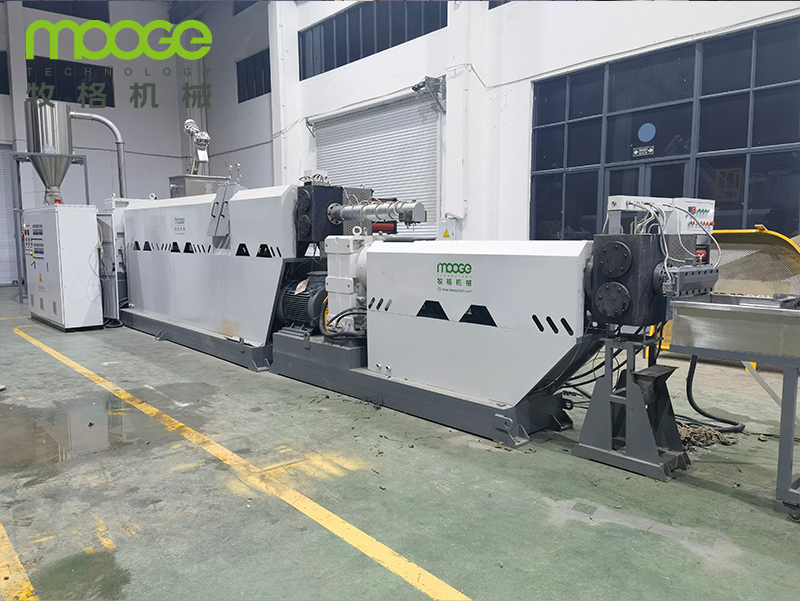

    Product Photos

    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine
    Plastic Pelletizing Extruder for HDPE, LDPE, LLDPE Rigid Flakes Recycling Plastic Recycling Pellet Machine

    Our Service

    Service Before Sale

    1. 24 hours online. Your inquiry will be quick reply by email.
    Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
    2. Professionally and patiently introduction, details pictures and working video to show machine

    Service On Sale

    1. Test every machine and inspect the machine seriously.
    2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
    3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
    original documents to you by Express For Free.
    If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you
    request. We will tell you the tracking number after delivery.

    Service After Sale

    1. Free insurance for goods
    2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
    Die Head
    Die mold made by the 40Cr material with forging treatment, surface been nitriding treatment and manufacturing by CNC
